Part Number:D38999/26KC03PN
Product Description:
MIL-DTL-38999 Series Ⅲ is a high performance, military-grade connector product designed to meet the rigorous demands of the military industry. It features a plug connector type, threaded coupling type, and a stainless steel passivated shell finish. The contact finish is gold, and it has an operating temperature range of -55°C to +125°C, making it ideal for use in extreme environments. This Military Detail-38999 Series Ⅲ connector offers superior protection from shock, vibration, and other environmental hazards. With its robust design and reliable performance, it is ideal for a variety of military and aerospace applications.
Features:
- Product Name: MIL-DTL-38999 Series Ⅲ
- Operating Temperature: -55°C To +125°C
- Connector Type: Plug
- Voltage Rating: 500V
- Number of Contacts: 3
- Number of Contacts: 10
Technical Parameters:
| Specification | Value |
| Series | MIL-DTL-38999 Series Ⅲ |
| Current Rating | 7 A |
| Operating Temperature | -55°C To +125°C |
| Number of Contacts | 3 |
| Shell Size | 13 |
| Contact Finish | Gold |
| Shell Finish | Stainless Steel Passivated |
| Contact Type | Crimp |
| Voltage Rating | 500V |
| Connector Type | Plug |

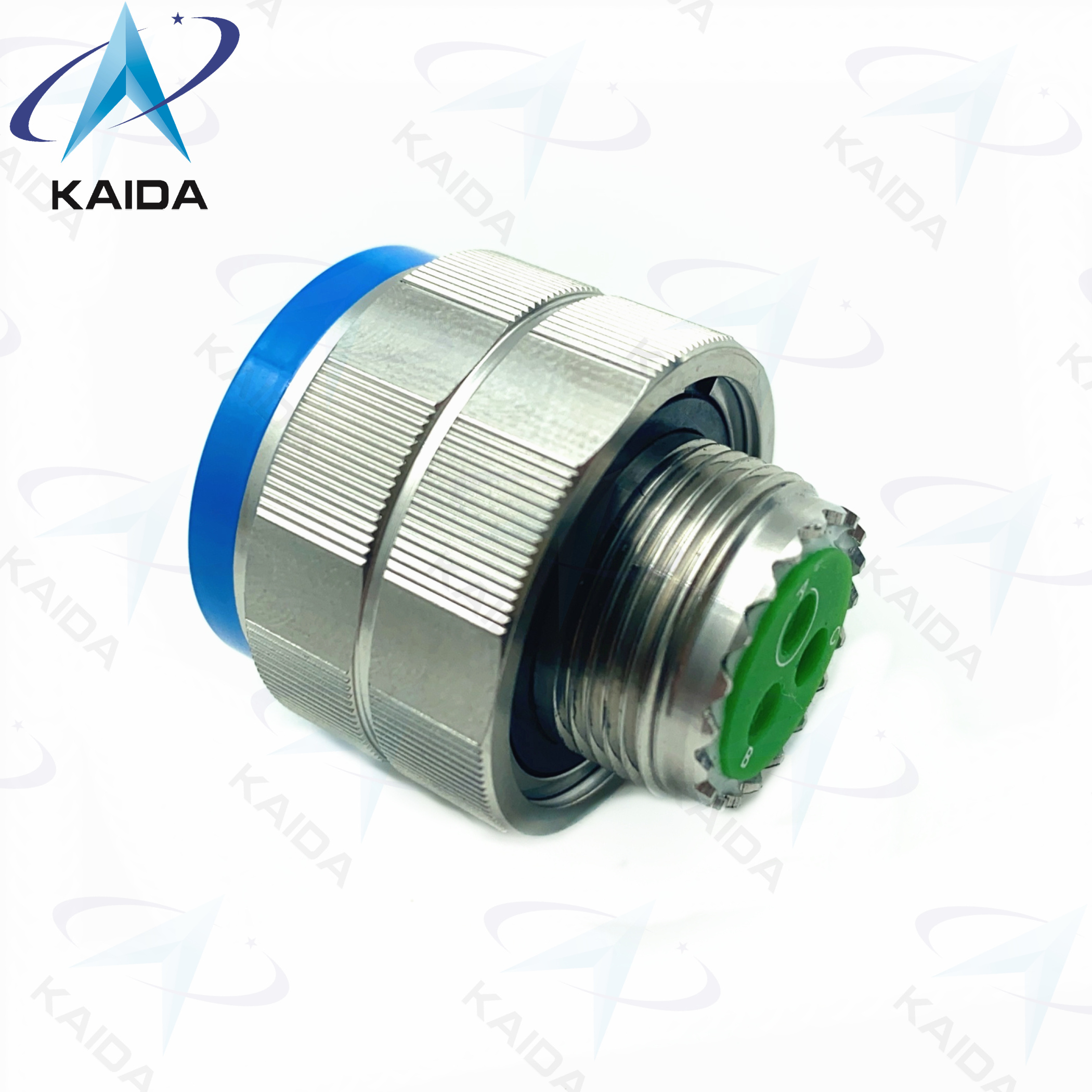

Product Pictures
Applications:
MIL-DTL-38999 Series Ⅲ is a military-detail 38999 series connector manufactured by KAIDA. It features stainless steel passivated shell, crimp contact, and threaded coupling. With a current rating of 7 A and a voltage rating of 500V, it is an ideal solution for a range of industrial applications. It is designed with copper alloy material, making it highly reliable and durable. It is also easy to install and use, making it an ideal choice for many industrial needs.
MIL-DTL-38999 Series Ⅲ is a perfect choice for harsh environment applications due to its stainless steel passivated shell and crimp contact. It is perfect for military and aerospace applications, and is highly reliable and durable even in extreme conditions. Its threaded coupling makes it easy to install and use, and ensures safe and secure connections. It is also widely used in industrial, medical, and telecommunications applications.
KAIDA's MIL-DTL-38999 Series Ⅲ connector is an ideal solution for many applications. From military and aerospace to industrial and medical, this connector has been designed to meet the highest standards of quality and reliability. With its threaded coupling, copper alloy material, and crimp contact, it is the perfect choice for a wide range of applications. It is highly reliable and durable, making it an ideal choice for any application.
Customization:
Customized Military-Detailed-38999 Series Ⅲ by KAIDA
- Brand Name: KAIDA
- Model Number: D38999/26WC03PN
- Place of Origin: China
- Number of Contact: 3
- Voltage Rating: 500V
- Contact Type: Crimp
- Contact Finish: Gold
- Operating Temperature: -55°C To +125°C
Support and Services:
MIL-DTL-38999 Series Ⅲ products are supported by a variety of technical services, such as:
- Product Engineering Support
- Product Lifecycle Management
- Material Supply Chain Management
- Quality Assurance Services
- Repair and Overhaul Services
Packing and Shipping:
MIL-DTL-38999 Series Ⅲ Packaging and Shipping
MIL-DTL-38999 Series Ⅲ connectors are shipped in accordance with the Defense Logistics Agency (DLA) Land and Maritime packaging and shipping requirements. Packaging materials must meet the requirements of MIL-P-81728, and must be sealed with tape, shrink wrap, or equivalent. The product must be identified with the manufacturer’s name, part number, and date code.
The shipping container must be constructed of wood or equivalent material and must meet the requirements of MIL-STD-2073. The container must be marked with the manufacturer’s name, part number, and date code. The shipping container must be designed to protect the product from shock, vibration, and moisture.
FAQ:
Q1: What is MIL-DTL-38999 Series Ⅲ?
A1: MIL-DTL-38999 Series Ⅲ is a series of high-speed circular connectors manufactured by KAIDA. The model number is D38999/26WC03PN and it is made in China.
Q2: What are the features of MIL-DTL-38999 Series Ⅲ?
A2: MIL-DTL-38999 Series Ⅲ features high-speed signal transmission, EMI shielding, vibration resistance, and high temperature resistance.
Q3: What is the application of MIL-DTL-38999 Series Ⅲ?
A3: MIL-DTL-38999 Series Ⅲ is typically used in aerospace and military systems, such as spacecraft, aircraft, and ground vehicles.
Q4: What is the material of MIL-DTL-38999 Series Ⅲ?
A4: MIL-DTL-38999 Series Ⅲ is typically made of aluminum alloy or stainless steel, although other materials may be used.
Q5: What is the temperature range of MIL-DTL-38999 Series Ⅲ?
A5: MIL-DTL-38999 Series Ⅲ can operate in temperatures from -55°C to +125°C.
D38999 Series 3 Datasheet.pdf
